Cake
Filter Cake
Cake Demoisturing
Demoisturing
Cake Equalizer

Special device used at yeast filtration on precoat drum filters to remove surplus suspension from the filter cake surface when emerging out of the suspension. The cake equalizer limits cake formation and adjusts the formed filter cake to an optimum thickness for subsequent cake washing and cake demoisturing.

Cake Filter

Denotation for filter types used for cake filtration such as the continuously working belt filter, disc filter, drum filter and pan filter or the discontinuously working candle filter, leaf filter, nutsche filter and filter press.

Cake Filtration

is a surface filtration process representing the third basic filtration type, beside deep bed filtration and crossflow filtration, respectively. Its objective is to retain the solids in a suspension as a bulk on the upper side of a filter medium. Both liquid or solids can principally be the desired product. Cake filtration requires a certain critical solids concentration in the feed to build particle bridges across the pores of the filter medium, which then act as the active filter medium. The driving potential for the cake filtration can be a gas differential pressure, a mechanical or hydraulic pressing power, or a centrifugal pressure. Hence the spectrum of cake filtration equipment is wide. The cake filtration allows washing of the bulk and its mechanical demoisturing after the cake formation process. The formation of filter cakes can be described by the cake formation equation.

Cake Formation Angle

Angular sector available for cake formation in a drum filter, disc filter or pan filter. The cake formation angle α1 is connected by the number of revolutions n with the cake formation time t1 as follows:

A cake formation angle starts the earliest at the position where the filter cell is completely immersed into the suspension, and it ends obviously where the cell emerges out of the suspension.

Cake Formation Equation

Relation for the description of the filter cake formation derived by combining Darcy’s law with a mass balance. For constant filtration pressure the following expression applies:

For constant feed flow rate it has the form below:

In most practical applications, the filter cake can be assumed to be incompressible and the filter cloth resistance Rm is much smaller than the cake resistance rC. Under these conditions, equation 1 can be simplified to following equation:

simplified cake Equation formation for Rm << rc

According to this simplified equation the cake height hC is a linear function of the square root of the cake formation time t1 and forms a straight line when plotted in a diagram of hC over the square root of t1.  The validity of this simplification can easily be proven by carrying out 3- 4 tests at constant pressure and different filtration times.

hc [m] = cake thickness, rc [1/m²] = specific cake resistance, Rm [1/m] = filter cloth resistance, κ = ‚ Kappa-Factor, Δp [N/m²]= pressure difference, t1 [s] = cake formation time, A [m²] = filter area, ηL [Ns/m²] = dynamic viscosity, VL [m³/s] = filtrate volume flow.

Cake Formation Zone

Process zone where filter cake is formed on a drum filter, disc filter or pan filter. The cake formation zone is determined by the cake formation angle in the control disc

Cake Permeability

The cake permeability pc is the reciprocal of the cake resistance rc:

The cake permeability is quoted in the unit ‚ Darcy [cm2]. It can be directly deter-mined by means of the t/V= f(V)-method from a filter experiment.

Cake Resistance

Specific permeation resistance rc of the filter cake. Cake resistance rc contains globally all the information about the inner pore geometry and structure of a filter cake, which cannot be calculated theoretically but must be measured directly as a material function. It is independent of the cake thickness and can be directly determined via Darcy’s law by flowing a particle-free liquid through two filter cakes of different heights at a predetermined pressure and measuring the flow rate. From the resulting two equations the filter cloth resistance can be eliminated. Normally, the cake resistance rc is determined directly by the t/V=f(V)-method.

Cake Thickness

as produced by cake filtration equipment can range from a few mm up to 1m height. Both filterability of the suspension and design features play important parts. The cake thickness can be described with the cake formation equation.

Cake Washing

Method for the removal of mother liquor and dissolved substances from a filter cake with a liquid, mostly miscible with the mother liquor. One differentiates between displacement washing and dilution washing; the latter involves re-suspending of the filter cake in the wash liquor. Quality criteria for displacement washing are a high wash degree, and low consumption of wash liquid which can be expressed by the wash ratio.

Calendering

is a thermal-mechanical surface treatment process for smoothening of woven surfaces. A weave made of thermally workable material is treated with pressure in a calender roller to give a smooth surface to a filter medium, which for example facilitates cake discharge. It should be noted that the resulting pore size of the filter surface is decreased by calendering.

Candle Filter

Discontinuously working filter equipment designed as either cake filter or deep bed filter. Often, cylindrically shaped filter elements are manifolded together in large number in a pressure tank to house an economically reasonable filter area in a given vessel volume. Candles covered with a filter cloth are applied in conventional cake filtration or in precoat filtration. They can discharge a dry cake after gas pressure demoisturing or a highly thickened suspension after dropping it in the surrounding heel (e.g. Fundabac filter). If candle filters are employed as deep bed filters they serve for the purification of liquids polluted with small amounts of contaminants. So-called rolled candles and elements made from sintered materials are also employed in candle filters.

Candle Press Filter

Special type of membrane filter press, at which the press membrane is arranged in a circular, cylindrical manner around a filter candle. This special design variant allows pressing forces of considerably exceeding 100 bar; it is used in extremely difficult to filter products, e.g. in the field of biotechnology.

Capillarity

The behavior of liquids caused by interfacial tension.

Capillary

(fr. L capillaris: hair). Fine pore channel in a porous bulk or in a filter medium.

Capillary Belt Filter

Filter machine in which the liquid flows out of a bulk material through the openings of a vibrating screen where it is received by an absorbing belt underneath, circulating against the solids transport direction. The absorbent medium is then squeezed between two press rollers and available again for a liquid intake upon return.

Capillary Condensation

denotes liquefaction of vapors in fine pores (capillaries) of a porous solid material. There is a strong physical relationship between the capillary pressure in such a pore and the relative humidity in the surrounding gas phase.

Capillary Diameter

is an equivalent diameter dcap for circular and cylindrical capillaries as determined by the Laplace equation from a capillary pressure pc:

γL = interfacial tension, δ = wetting angle. This value is derived from a bubble Point Test.

Capillary Entry Pressure

As capillary pressure is indirectly proportional to the diameter of a capillary, the pressure of the largest capillary in the bulk that bubbles first is called the capillary entry pressure. This is the minimum gas pressure to be applied from the outside to demoisture the largest capillaries.

Capillary Liquid

denotes in general the liquid contained in the pores of the bulk which are hydraulically connected to each other and thus accessible to mechanical demoisturing (coarse capillary liquid).

Capillary Module
Hollow Fiber Module
Capillary Pressure

is the pressure difference across a curved gas-liquid phase boundary, which is compensated by the interfacial tension. The capillary pressure in the pores of a filter cake holds the liquid in it. A capillary pressure can have positive or negative values. Accordingly, a capillary pressure is positive if a lower pressure exists in the phase with the larger. Therefore, the capillary pressure of a liquid droplet in a gaseous environment is negative, whereas the capillary pressure of a gas bubble in a liquid would be positive.

Capillary Pressure Curve

is a function that describes the capillary pressure distribution within a bulk due to the underlying pore size distribution. The capillary pressure is thereby ploted against the saturation degree. This function defines what minimum saturation degree can be reached at equilibrium for each pressure difference that is constantly applied on the bulk from the outside. Special values of the capillary pressure curve are the capillary entry pressure and the remanent saturation. The capillary pressure curve can be determined for an applied gas difference pressure or for a centrifugal field; both measurements results should be theoretically the same. The capillary pressure curve in homogeneous bulks does not depend on the physical height of the bulk.

Capillary Pressure Distribution
Capillary Pressure Curve
Capillary Rise

Height of a liquid column in a wetted capillary or in a bulk, adjusting itself against the hydrostatic pressure in equilibrium:

γL = interfacial tension, δ = wetting angle, pc = capillary pressure, g = gravitational acceleration, ρL = liquid density, dcap = capillary diameter

Capillary Suction Draught
Capillary Pressure
Carman & Kozeny-Equation

is used to quantify the permeation velocity v in bulk solids analogous to Darcy’s law, however, it explicitly describes the influences, respectively, of the po-rosity ε, the volume specific solids surface SV, the fluid viscosity η, the driving pres-sure difference Δp, and the filter layer thickness hC:

The value of k(ε) is constant at around 5 in the porosity region of ca. 0.3 ≤ ε < 0.65 . k(ε) has to be determined precisely by a calibration measurement. The equation em-phasizes the strong influence porosity has on the permeability of bulk materials. A similarly structured relation is given by the Gupte-Equation.

Cataphoresis
Electrophoresis
Cation

A positively charged ion in a solution (comp. anion)

Caulking

Method used for holding the filter cloth on the cells of a drum filter or pan filter. For this the filter cloth and the caulking material such as a sash cord or rubber are forced into dovetail grooves.

Cell
Filter Cell
Cell Belt Filter
Tray Belt Filter
Cell Drum Filter
Drum Filter
Cell Foot

Transitional section of a filter cell in a disc filter into the filtrate pipe.

Cell Insert

Structure, usually made of plastic, to stabilize the cells interior against the acting differential pressure and to simultaneously enhance filtrate drainage. Cell inserts have different geometric shapes in order to optimize mechanical stability, costs and permeability, respectively.

Cell Less Drum Filter
Drum Filter

with a non-partitioned interior that is completely exposed to a vacuum. For the cake removal a so-called control shoe with sliding seals is pushed in the removal zone against the drum’s inner wall for cake removal by compressed air backpulse. The filtrate in turn is withdrawn from the base of the drum’s internal space by a filtrate suction pipe.

Cellulose
Filter Aid

manufactured from coniferous or deciduous trees or other renewable resources (e.g. Rebecel) by cooking, bleaching, and grinding. Cellulose is often offered as mixture with diatomaceous earth.

Celtic-Weave
Plain Weave
Centrate

Cleared liquid evolving from a centrifuge.

Centrifugal Dryer

Discontinuously operating centrifugal filter in which the filter cake can be dryed thermally after mechanical desaturation. For thermal drying hot gas is permeating the filter cake to evaporate the remaining liquid.

Centrifugal Extractor

Special design of a disc stack separator used for the separation of two immiscible liquids with different densities. The heavy phase is discharged with a peeling disc by adding extraction agents into the mixing chamber. A complete and spontaneous mixing of the extraction agent is achieved through the peeling disc.

Centrifugal Filter

filter centrifuge with a perforated drum that is covered with a filter medium. Centrifugal filters can demoisture cake solids to a great extent by removal of the fluids that are held by capillary forces and can produce a free-flowing solid product.

Centrifugal Force

A particle in circular motion strives to leave the circle in the direction of the tangent to its path according to the law of inertia. A force has to be exercised on it constantly, pointing to the center of the circle, called the centripetal force. According to the counter effect principle the centrifugal force corresponds to this as an oppositely directed, equal-sized force. It represents the inertial resistance with which the moving particle opposes the constant change of the direction of its path.

Centrifugal Machine
Centrifuge
Centrifugal Mixer

A rotating mixing chamber fed centrally through concentric pipes with liquid com-ponents and equipped with a stationary peeling disc for the discharge of the mixed liquid.

Centrifugal Time

Residence time of solids to be separated out of a suspension in the process chamber of a centrifuge.

Centrifugal Value
C-value
Centrifugation

solid-liquid or liquid-liquid separation process in a centrifuge.

Centrifuge

Rotating separation apparatus employing centrifugal forces as driving potential. Mass forces are produced that act both on the particles to be separated as well as on the liquid contained in the centrifuge. Centrifuges are used for sedimentation and filtration. The range of C-values in commercial centrifuges starts in the low 100’s and can go up to several 10,000.

Centrifuge Rotor

The machine component of a centrifuge in which a separation process is per-formed at high speeds by sedimentation or filtration.

Centrifuge Value
C-value
Centripetal Force
Centrifugal Force
Centripetal Pump
Peeling Disc
Ceramic Disc Filter

A continuously operating vacuum filter based on a disc filter. In place of conven-tional filter cells the filter elements are ceramic plates filtering on both sides. The microporous filter plates have approx. 1µm pore size, are each several mm thick, and therefore impose a high flow resistance that controls the filtration process. The minute pore width is advantageous for producing filtrates free of particles and without gas flow in the vacuum region. The capillary pressure of the hydrophilic ceramic media is larger than the applied pressure difference, so that the pores remain always wetted.

Chain Assisted Cake Removal

Special type of filter cake removal in drum filters where parallel running chains or strings (string assisted cake removal) are guided around the filter drum and are led away from the drum in the cake removal sector. Following a sharp deflection by a roller system the chains are routed back to the drum. The filter cake consisting of mostly fibrous solid particles builds up around the chains. Therefore the cake is picked up in the removal sector of the drum by the chains like a fleece and is thrown off at the sharp chain deflection.

Chamber Filter Press

The most common design variant of the filter press filter where two neighboring filter plates with a one-sided cavity face each other to form a filter chamber. The filter medium is stretched over each plate and is pressed into the chamber during the process. The discharge of the cake from chamber filter presses can be executed far more beneficially and simpler than from frame filter presses. However, since the cake discharges due to its weight by dropping out of the chambers, a certain cake thickness of several centimeters is required, which tends to lengthen the cycle. In addition to this disadvantage, a further problem can be that residual volume filtration will not be possible, if the suspension feed stops when the chambers filling has not been completed. In this regard the membrane filter presses are clearly at an advantage.

Channeling

Phenomenon observed during sedimentation of particles in the region of swarm sedimentation. At certain concentrations (intermediate suspensions) hydrodynamic instabilities can occur that form particle-free liquid channels parallel to the sedimentation direction. Similar effects are known for the flow through fluidized beds.

Charcoal
Activated Carbon
Chemisorption
Adsorption
Chitosan

Food-suitable flocculation agent produced from shells of crustaceans.

CIP
Cleaning In Place
Circular Thickener
Gravity Thickener
Clarifying

has the process-related objective of removing solid particles or colloids, respectively, from a liquid by sedimentation or filtration.

Clarifying Filtration

is defined as the complete separation of all particles from a dilute suspension (e.g. beverage), most frequently done by deep bed filtration.

Clarifying Separator

Special design of a disc stack separator for separating solid particles and liquids. Herein the disc package does not contain any rising channels, as in the disc stack separators, which are conceived for the separation of two non-miscible liquids with different densities and potentially solids, too. Clarifying separators are designed with respect to the feed solids content as nozzle-type separators or as self-cleaning separators. They are able to reach C-values of more than 15,000 and have equivalent clarifying areas of up to 100,000sq.m. Clarifying Separators are employed for the separation of extremely small particles down to the sub-μm region.

Classifying

Separation of a particle collective into fractions of different particle sizes.

Cleaning In Place

Method to clean an apparatus without dismanteling by internal spray nozzels, which are able to reach every location in the process room to be cleaned.

Clear Liquid

commonly refers to the overflow of gravity thickeners with as few particles as possible.

Clear Liquid Zone

Nearly particle-free zone developing in the upper section of a sedimentation tank (gravity thickener), from where the separated liquid is taken off with an overflow.

Clear Run

Phase in the cake filtration process after the formation of solid bridges over the pores of the filter medium when the solids loss ends and a clear filtrate begins to flow.

Clogging Layer

Phenomenon in the cake filtration under the influence of gravitational or centrifugal forces, observed as a partition of the suspension with respect to its particle size. The larger solid particles settle quickly on the filter medium according to Stokes’ law, whereas the smaller particles are deposited later on the cake surface forming a so-called clogging layer. Often, this clogging layer is highly impermeable and it will then increase the capillary entry pressure and thus the residual moisture of the resulting filter cake.

CMC

Critical Micelle Concentration Micelles

Co-Current Flow Decanter

Special flow distribution of the centrate in a decanter centrifuge. The feed suspension enters at the cylindrical end of the centrifuge, so that solids and centrate can move together towards the conical end. From there the centrate is re-turned by channels attached along the structure of the ‚ transport screw for di-scharge from the cylindrical end. The purpose for this design is to disturb the sett-ling process of the solids as little as possible. It affords readily a high separation degree, i.e. a very clear centrate, with solids that tend to get re-suspended easily by eddies.

Co-Current Washing

is the simplest way of carrying out displacement washing or dilution washing where the wash liquid is brought only once into contact with the particle system to be washed. This method consumes more washing liquid than counter-current washing. The latter, however, is not feasible with all types of separation equipment. In centrifuges for example only the co-current washing method can be employed due to a lack of possibilities for segregating the centrate.

Coagulation
Agglomeration

of fine-grained particles by the destabilization of a suspension, due to a change in the ionic make-up, which leads to a dominance of the attracting Vander-Waals forces.

Coalescence

Phenomenon of emulsion instability. If two droplets of an emulsion get into contact, they can aggregate to one bigger drop. This is a demixing effect. One can stabilize emulsions against coalescence by surfactants (emulsifier).

Coarse Capillary
Coarse Capillary Liquid
Coarse Capillary Liquid

is defined as the major portion of liquid in a saturated bulk that is held between the particles in hydraulically inter-connected voids. The coarse capillary liquid is readily accessible to mechanical demoisturing by gas differential or centrifugal pressure. Beside the coarse capillary system exists also a fine capillary system.

Coarse Capillary System
Coarse Capillary Liquid
Coarse Material

When a suspension or a bulk material displaying a particle size distribution is separated into two fractions of different grain size, the fraction containing the larger ones is called the coarse material.

Coarse Screen

Equipment employed in sewage treatment for the screening of coarse particles in the cm-size region, such as paper, wood, plant refuse, plastics. The screen is periodically cleaned off the accumulated debris with an automatic, comb-like device.

Coiled Candle
String-Wound Cartridge
Colloid

So-called colloidal disperse systems are aggregates of molecules, comprised 103 up to 109 molecules; they would have a diameter of 10-7 to 10-4 cm if they assumed a spherical shape. Colloids assume an intermediate position between the molecular disperse and the coarsely disperse systems. They are difficult to separate in stable dispersions and cause turbidity in a separated clear liquid.

Combination Arrangement

In-series arranged solid-liquid separation machines for dividing the separation pro-cess into sections of different liquid content. A typical combination may consist of a pre-thickener (e.g. static circular thickener), followed by a mechanical demois-turing apparatus (e.g. vacuum drum filter), and last, a thermal drying step (e.g. spin flash-dryer). Through proper serial combination of separation equipment a desired separation can be technically realized and at the same time economically optimized.

Common Trough

Special design of a filter trough for disc filters with large disc diameters. Contrary to the single trough design all filter disc run in a common trough equipped with an agitator for slurry homogenization.

Composite Membrane
Membrane

consisting of at least two different materials which are solidly attached to each other. Composite membranes are employed especially in ultrafiltration which demands extremely small membrane pores for the material retention. They consist of a fine porous, very thin cover layer with high flow resistance and a large-pored, mechanically stable support layer underneath. Weaves and fleeces are often used as a support layer.

Compressed Air Blow Back

The energy source for detaching a filter cake from a filter cloth at the solids discharge of drum, disc, candle and leaf filters. After demoisturing a sudden increase of pressure is generated on the filtrate side behind the filter medium, in order to break the cake up or cast it away. A critical point with pressurized air blowback is the potential for filtrate residues remaining in the cloth or in the filter cell, which can consequently cause re-moisturizing of the filter cake.

Compressibility

The property of a bulk to decrease its void space due to a load acting from the outside. The dimensionless compressibility degree U is used to quantify compressibility. U relates the difference between the original layer thickness L1 and a present layer thickness L to the maximum compression (L1 -L), which in turn is the difference between original layer thickness L1 and the layer thickness reachable at equilibrium L:

Compression

Process employed in solid-liquid separation technology for the demoisturing of bulk materials, which do not have a rigid pore matrix. The liquid is squeezed to the outside by decreasing the pore volume, so that the dry substance content increases. Compression is technically preferably achieved with the aid of press filters. During sedimentation, the developing bulk is furthermore subject to compression by the acting mass forces. Compression does not only occur with elastic but also with rigid particles. There are four different modes of compression: first, the particles approach each other; secondly, they glide past each other; third, further compression can be achieved to a certain extent by rearranging the particles, and fourth, a particle fracture occurs.

Compression Layer

Term used in the field of sedimentation. The compression layer in a thickener defines the region where the settled particles at the bottom of the tank ap-proach each other to such an extent that they are capable of transferring mechani-cal forces among each other. The sediment in this region is compressed due to its weight. The higher the layer and the longer the time spent the stronger the com-pression.

Compression Work

Energy W, which has to be applied for the compression of a gas with the volume Vg1 (air) by the pressure pg1, in order to generate and maintain a pressure difference (Δp = pg2 – pg1), necessary for vacuum or overpressure filtration. It is calculated for an isentropic change of state with the isentropic coefficient κ:

Concentrate

Term used especially in the region of the micro- and crossflow filtration for the resulting suspension, after permeate is drained off through the membrane. The concentrate is in any case still a free-flowing sludge.

Concentration
Solids Content
Concentration Polarization

Term out of the field of crossflow filtration. At the permeation of the filter a con-vective transport of the materials to be retained develops in the direction of the membrane due to the pressure difference across the membrane. In the course of this developing concentration gradient, a diffusive back transport into the core flow results. In the stationary case an equilibrium between these two processes is reached.

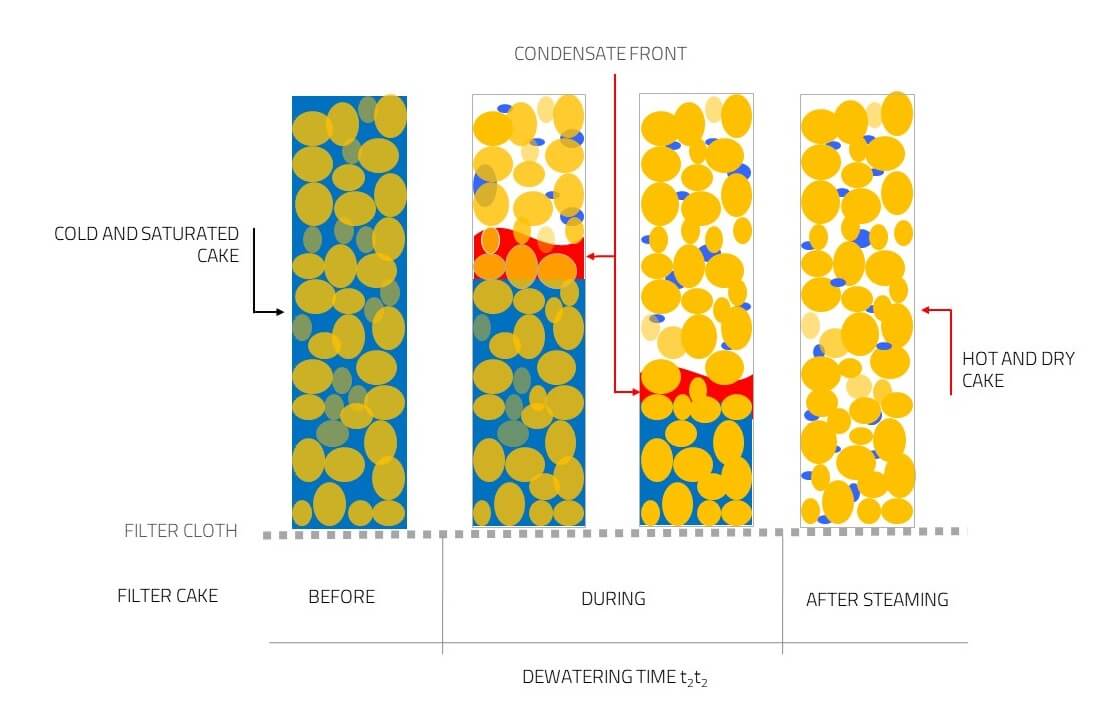

Condensate Front

Phenomenon at the Steam Pressure Filtration on BoHiBar Filters which provides for excellent filter cake demoisturing and filter cake washing. A condensate front is formed when a “cold” and saturated filter cake enters the hot atmosphere of overheated or saturated steam in a steam cabin. Then, the steam conden-ses on the surface of the cake and the condensation enthalpy heats the cake surface up to the condensate temperature. While the pressurized steam forces the mother liquor and the condensate through the cake, cold regions of the filter cake come in contact with steam and further condensate is formed. This leads to a sharply defined and evenly developed condensate front which moves through the cake as a homogenous condensate layer preventing a fingering. Thereby, the mother liquor is displaced and the cake is completely heated up to the temperature of the condensate. This mechanism combines heat and mass transfer between filter cake and steam.

Conditioning

The changing of the properties of a suspension, a sludge, or a filter cake. Suspension conditioning is defined as a pretreatment for the improvement of the separation characteristics. This can be for example a flocculation by addition of a polymer. The sludge conditioning can also include an agglomeration process for the improvement of additional demoisturing steps. Slurries or filter cakes can be conditioned with additives, such as lime, to increase their dry substance content as required for landfilling, for example.

Consolidation
Compression
Contact Angle

The contact angle δ characterizes the wetting of solids by a liquid. One talks about wetted conditions, if the contact angle, measured always in the fluid phase with a higher density, is < 90°; is it > 90° one talks about non-wetted conditions.

Contact Point Number

Count of contact points a particle has with neighboring particles in a bulk material. In regular packages, exactly defined in geometric terms, the contact number is fixed. Thus a particle in densest possible sphere package possesses 12 contact points to its neighboring particles. The contact point number influences the bulk properties, especially in the region where the liquid is bound essentially only in the form of liquid bridges. It influences the tensile strength and the saturation degree of the moist bulk.

Continuous Phase

In a mixture out of solids and liquid for example one of both substances represents depending on the concentration the continuous and the other the discontinuous or disperse phase. The continuous phase is connected together and encloses the discontinuous phase. In a suspension the liquid presents the continuous phase, whereas the dispersed solids forms the discontinuous phase. By compari-son at a filter cake the connected solids structure forms the continuous phase and the liquid is distributed as a discontinuous phase in the ‚ pores of the bulk.

Continuous Separation Apparatus

Separation apparatus which is equipped with a constant feed for the suspension and steady discharges of separated liquid and moist solids. The individual steps of the separation process therefore are synchronized in terms of transport velocity and the geometry of the apparatus and are not independently adjustable. Continuously working machines are typically employed for large mass flows and continuous production processes. Decanter centrifuges or drum filters are examples for continuously working separation apparatus.

Control Disc

A disc made out of special grade cast iron or HDPE, employed at the control head of rotary filters, into which the control zones are cut as slots. The control disc is stationary while the filtrate pipes move from control zone to control zone (e.g. cake formation zone, demoisturing zone, compressed air blowback zone, cloth cleaning zone).

Control Head

Interface between the stationary and the rotating part during the draining off of filtrate at rotary filters. A control head is divided into different control zones, in order to adjust independently and separately from each other the pressure difference in the cake formation and demoisturing region, as well as the compressed air blowback for the cake discharge, and possibly a bubbling zone. Respective to their design, one can differentiate between axial and radial control heads. In the axial type the division into zones is performed by the so-called control disc into which the slot-shaped control zones are cut. The control head sits flat with seals against the rotating counter part of the integrated ‚ filtrate pipes. In a radial control head, the rotating part moves concentrically in a stationary ring with a channel, which can be divided by so-called separation plugs into separation zones. The sealing is with gland packages. In industrial practice the axial control head is preferred due to its easier sealing and lower design complexity.

Control Plate
Control Disc
Control Valve
Control Head
Conveyer Screw
Discharge Screw
Conveyor Chute

Discharge device for solids (discharge chute), usually designed in the form of a pipe, through which the separated and demoistured solids leaves the process chamber of the separating apparatus under the influence of the gravitational force. The requirement for the functioning of a conveyer chute is a sufficient pourability of the product. If this tends to stick, then one selects a discharge screw instead of a conveyer chute.

Cooling Centrifuge

Discontinuously working laboratory centrifuge with integrated cooling of the beakers. Especially with high speed centrifuges in the region of several thousand g the rotor is heated by the friction of surrounding air. If a constant temperature is desired, for example due to probable product destruction other wise, the rotor has to be cooled.

Coriolis Force

is acting during a relative movement of a particle against a rotating reference system in the centrifugal field. It is an inertia force usually possessing a negligibly small value.

Coulomb‘s Friction Law
Friction
Counter-Current Washing

Process for the removal of unwanted solutes from suspensions or filter cakes, especially for saving wash liquid. The counter-current washing can be applied in displacement washing as well as in dilution washing. The fresh washing liquid is added at the end of the separation process in order to clean the already almost completely cleaned product. The washing liquid by this now already enriched with some mother liquor is then utilized for the purification of the even stronger contaminated product located further in the direction of the process beginning. Finally, the highly enriched wash liquid is discharged out of the process.

Counter Flow Decanter

Conventional and simple design of a decanter centrifuge. The suspension is fed approximately in the middle between the cylindrical and the conical end of the centrifuge. Solids and centrate stream then in a counter flow. While the transport screw conveys the solids into the direction of the conical end, the centrate flows in the opposite direction to the cylindrical end, where it leaves the centrifuge for example over a weir disc.

Counter Ions

Layer of ions, relative strongly bound to a charged particle surface, out of the sur-rounding liquid with a particle surface of opposing charge. With increasing distance from the particle surface the concentration of the counter ions, compensating the surface charge, decreases. According to the DLVO-Theory the compensation of the particle charge by the counter ions determine to what extent particles are capa-ble of agglomerating due to their attracting Van-der-Waals forces.

Crack Formation
Shrinkage Crack Formation
Cricket Filter

Discontinuously, in a pressure tank under overpressure working cake filter. The filter elements are similar to filter candles but however display a flattened shape. They thus represent a connecting link between candle filters and leaf filters. Several filter elements are comprised in a register. In a pressure tank several regis-ter are arranged parallel. Cricket filters are suited for dry- and wet discharge of a product and can be employed as a precoat filter. The cricket filter is a typical representative of a fine filter for suspensions difficult to filtrate.

Crimping

Soaking of weaves in boiling water, applied a pre-treatment, e.g. with cotton fabrics to render them resistant to shrinking.

Crossflow Filtration

comprises all filtration techniques, where the suspension to be separated is lead under a pressure in parallel flow to a filter medium, in order to prevent the deposition of solids on the filter medium as much as possible. Due to a pressure difference, the permeate penetrates the filter medium. The concentrate leaves the process chamber highly concentrated but still free flowing. At dynamic crossflow filters the shear flow can additionally be increased by stirring elements (BoCross-Filter of the BOKELA company). Microporous membranes are usually employed as filter media. The field of application for crossflow filters is vast and ranges from upgrading of sewage to product isolation at biotechnological productions. The production of high-purity liquids (sterile filtration) from suspensions with often extremely low particle concentrations in the µm- and sub-µm region and poor filtration behavior is characteristic. Both precoat filtration and disc stack separators are in competition with crossflow filtration.

Cushion Module

Special packaging of a membrane filter medium in a micro- or ultra filtration unit. Here two membrane discs are welded together at the outer edge. Between both membrane discs a spacer is situated through which the permeate is discharged by means of a permeate drain off pipe, connected tightly with the membrane cushion. Designs with circular or rectangular membrane cushions are known. In the case of a circular membrane cushion the permeate flows to a centered discharge pipe. Several membrane cushions are combined in a pipe-shaped casing to a membrane module.

Cut-Off
Cut Size
Cut Point
Cut Size
Cut Size

Particle size, which is found in equal amounts in the fines and in the coarse materials following a separation process.

Cvalue

states by how many times the centrifugal acceleration in a centrifuge surpasses the gravitational acceleration g:

r = centrifuge radius, ω = angular velocity, n = revolution number of the centrifugal drum, d = centrifuge diameter. C-values at industrial centrifuges can reach values of several 100 up to several 1,000.

Cyclone
Hydrocyclone
